Description

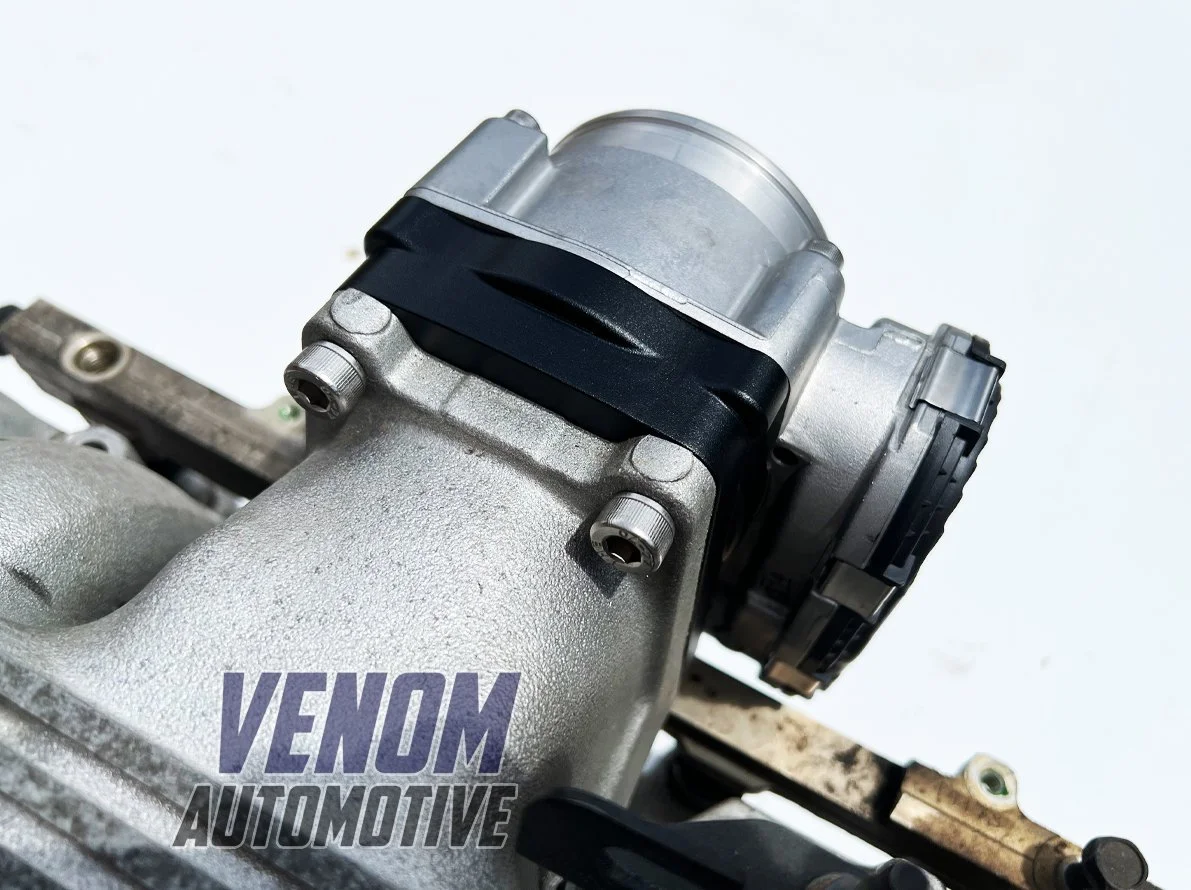

Venom Automotive 1UZ-FE Non-VVTi Drive By Wire (DBW) Throttle Body Adaptor is design to mount a Bosch 74mm (PN: 0 280 750 474 - Not Included) to the Non-VVTi OEM Intake Manifold to enabling a host of benefits when paired with an aftermarket ECU such as:

1. Tidy up the Engine Bay by deleting Throttle Cable

2. Increased Tuneability and Idle Control

3. Launch control capability

This bracket is reversible to suit chassis or aftermarket fuel line configurations.

Requires the use of aftermarket ECU and E-throttle pedal.

Finish

CNC Billet 6061 Aluminium - Black Anodised

Included

-1x JZA80 Billet DBW Adaptor to suit 1UZ-FE Non-VVTi

-4x M8 Grade 316 SS Bolts

-4x M6 Grade 316 SS Bolts

-4x M6 Grade 316 SS Washers

- 2x O-Rings

Installation Tips

1. Remove OEM Throttle Body as per the Toyota Soarer Repair Manual (TSRM)

2. Remove existing manifold studs with Vice Clamps in an anti-clockise direction

3. Drill out upper threads to a 9mm size to allow M8 bolt to pass through.

4. Ensuring 3mm O-Ring is correctly seated, Install Adaptor Plate (no OEM gasket req.)

5. Ensuring 2mm O-ring is correctly seated, Install Bosch 74mm DBW Adaptor.

6. Complete Wiring Installation - Refer Bosch Installation Instruction (not supplied).

7. Reinstall Intercooler Piping - Note that additional lengths or bends will be required as this throttle body is shorter than the OEM Variant.
