Description

Venom Automotive 2JZ-GTE VVTi Drive By Wire (DBW) Throttle Body Adaptor is designed to mount a Bosch 74mm (PN: 0 280 750 474) Pedal to the VVTi OEM Intake Manifold to enable a host of benefits when paired with an aftermarket ECU such as:

1. Tidy up the Engine Bay by deleting the existing DBW throttle body

2. Increased Tuneability and Idle Control

3. Launch control capability

This bracket allows for the Bosch Throttle Body to be rotated any direction to suit chassis or aftermarket fuel line configurations.

Requires the use of aftermarket ECU and E-throttle pedal.

Finish

CNC Billet 6061 Aluminium - Black Anodised

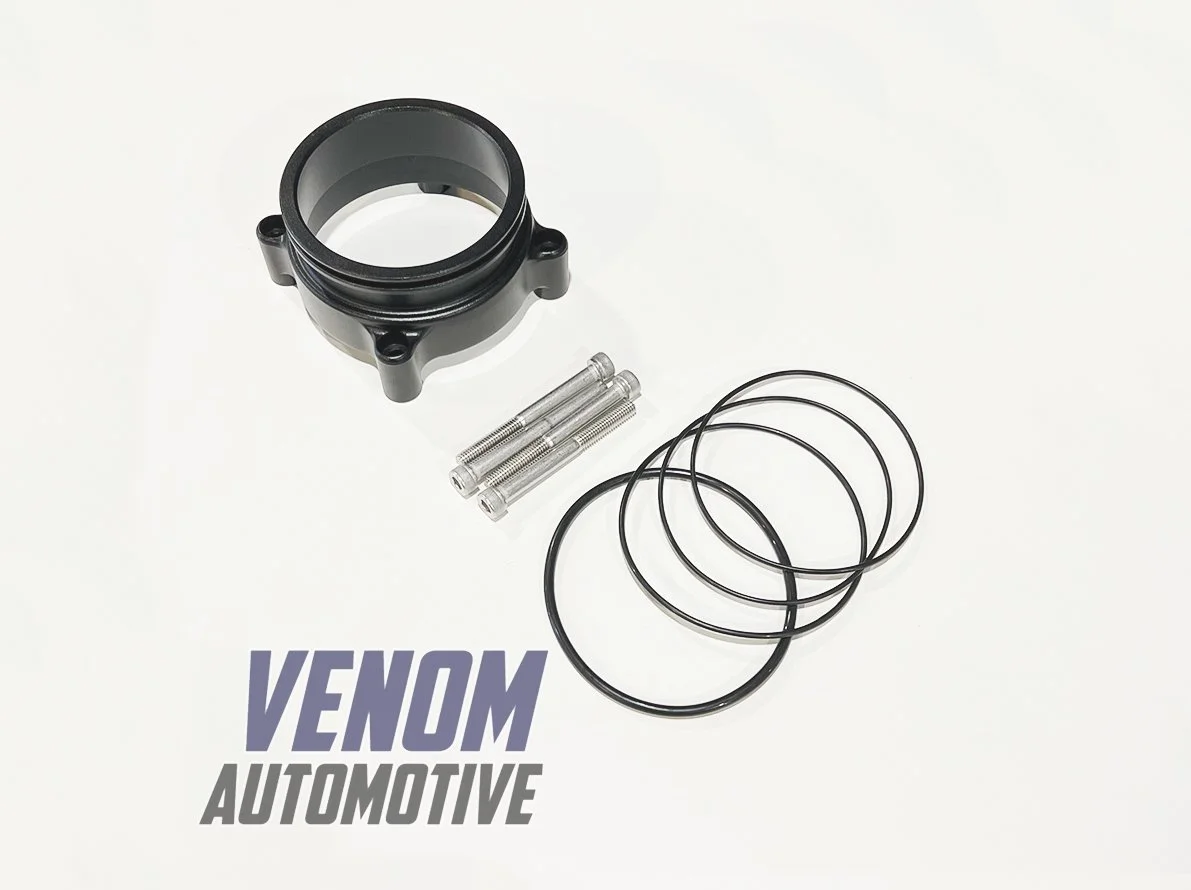

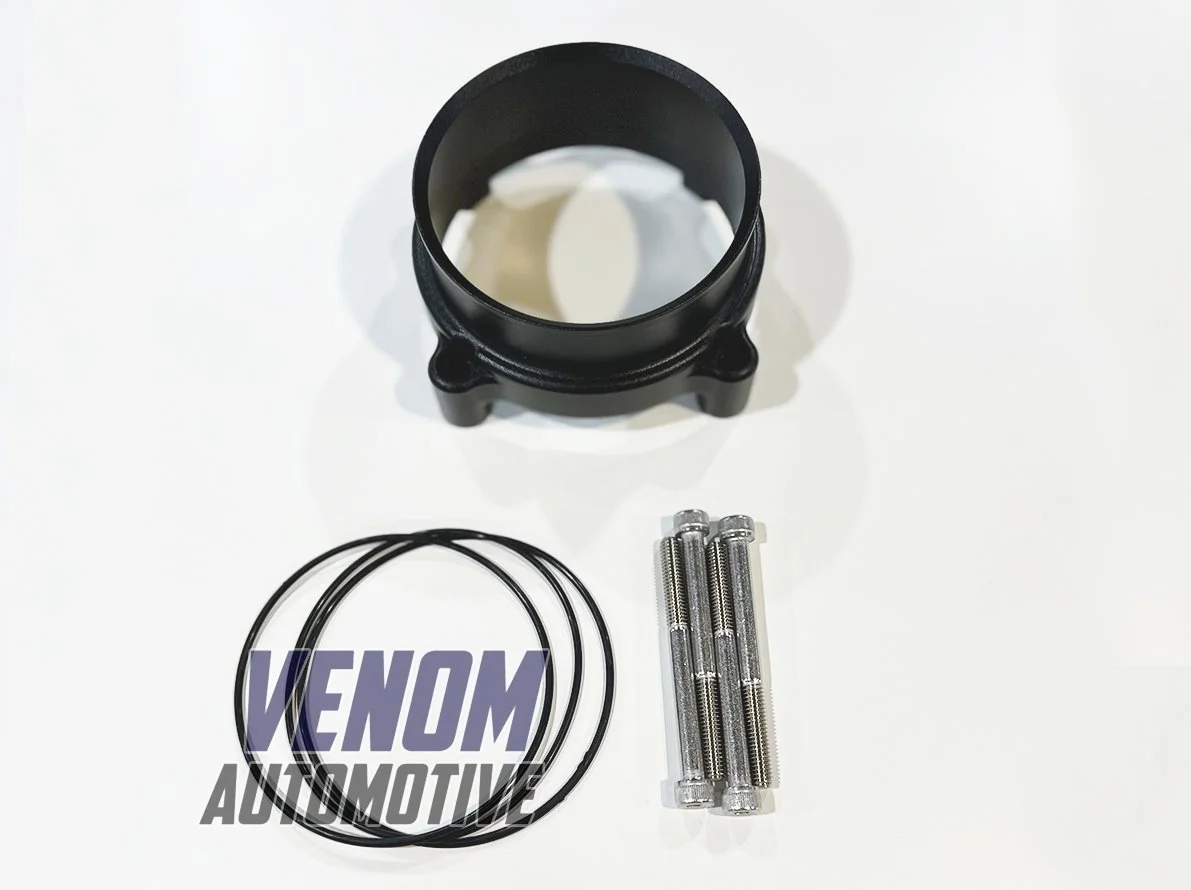

Base Kit Includes

• 1x JZA80 Billet DBW Adaptor 2JZ-GTE VVTi

• 4x M8 Grade 316 SS Bolts

• 4x M6 Grade 316 SS Bolts

• 4x M6 Grade 316 SS Washers

• 2x O-Rings

Customise a kit and save!

• ADD-ON - Genuine Bosch Pedal with Connector

• ADD-ON - Intercooler Pipe Adaptor (3” Silicone or 3” Wiggins/Plasmaman Style)

• ADD-ON - Firewall Pedal Mounting Adaptor for Bolt In on MkIV/JZA80 Supras

Simply select your options below prior to adding to Cart.

Installation Tips

1. Remove OEM Throttle Body as per the Toyota Supra Repair Manual (TSRM).

2. Remove existing lower manifold studs.

3. Ensuring the 3mm O-Ring is correctly seated, Install Adaptor Plate (no gasket required).

4. Ensuring the 2mm O-ring is correctly seated, Install Bosch 74mm DBW Adaptor.

5. Complete Wiring Installation - Refer Bosch Installation Instructions (not supplied).

6. Reinstall Intercooler Piping - Note: additional length will be required as this throttle body is shorter than the OEM Variant.
