Description

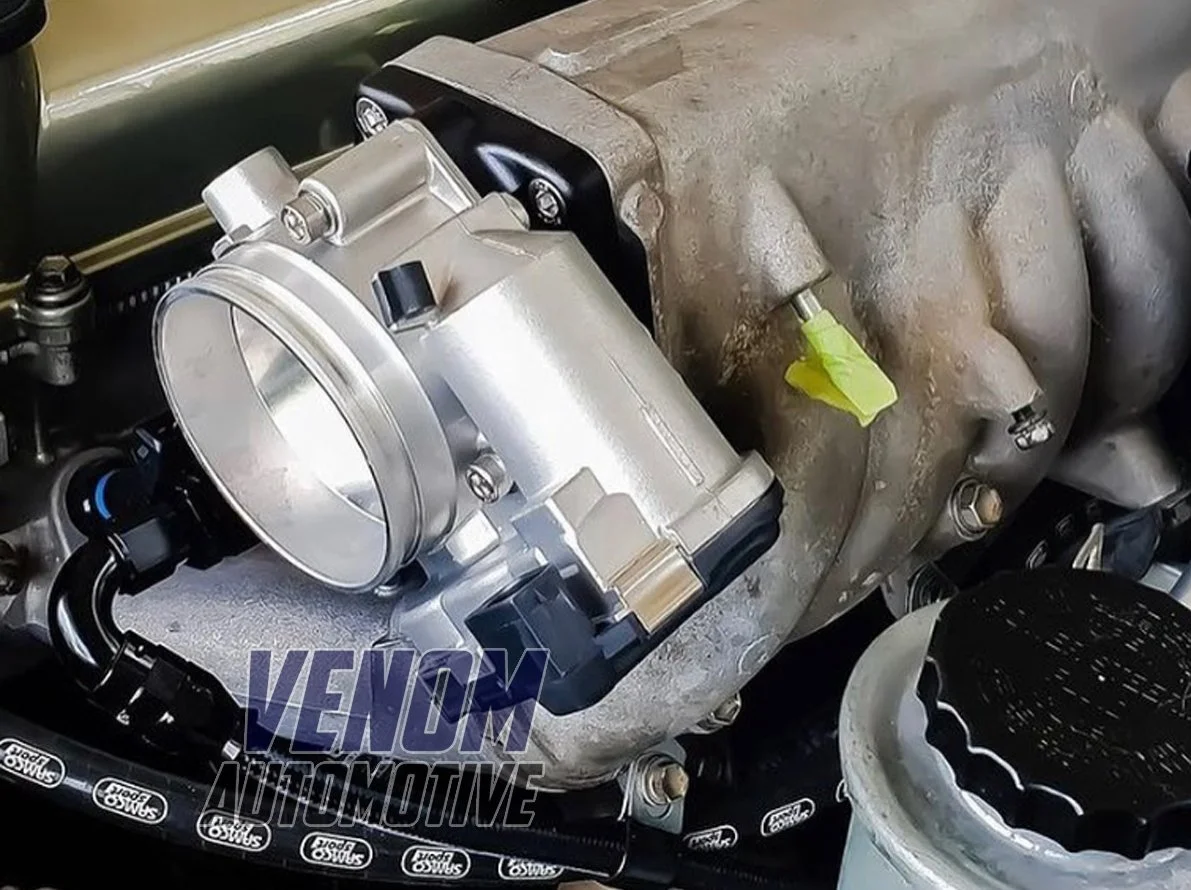

Venom Automotive 2JZ-GTE Non-VVTi Drive By Wire (DBW) Throttle Body Adaptor is design to mount a Bosch 74mm (PN: 0 280 750 474 - Not Included) to the Non-VVTi OEM Intake Manifold to enabling a host of benefits when paired with an aftermarket ECU such as:

1. Tidy up the Engine Bay by deleting Throttle Cable

2. Increased Tuneability and Idle Control

3. Launch control capability

This bracket is reversible to suit chassis or aftermarket fuel line configurations.

Requires the use of aftermarket ECU and E-throttle pedal.

Finish

CNC Billet 6061 Aluminium - Black or Raw Finish

Included

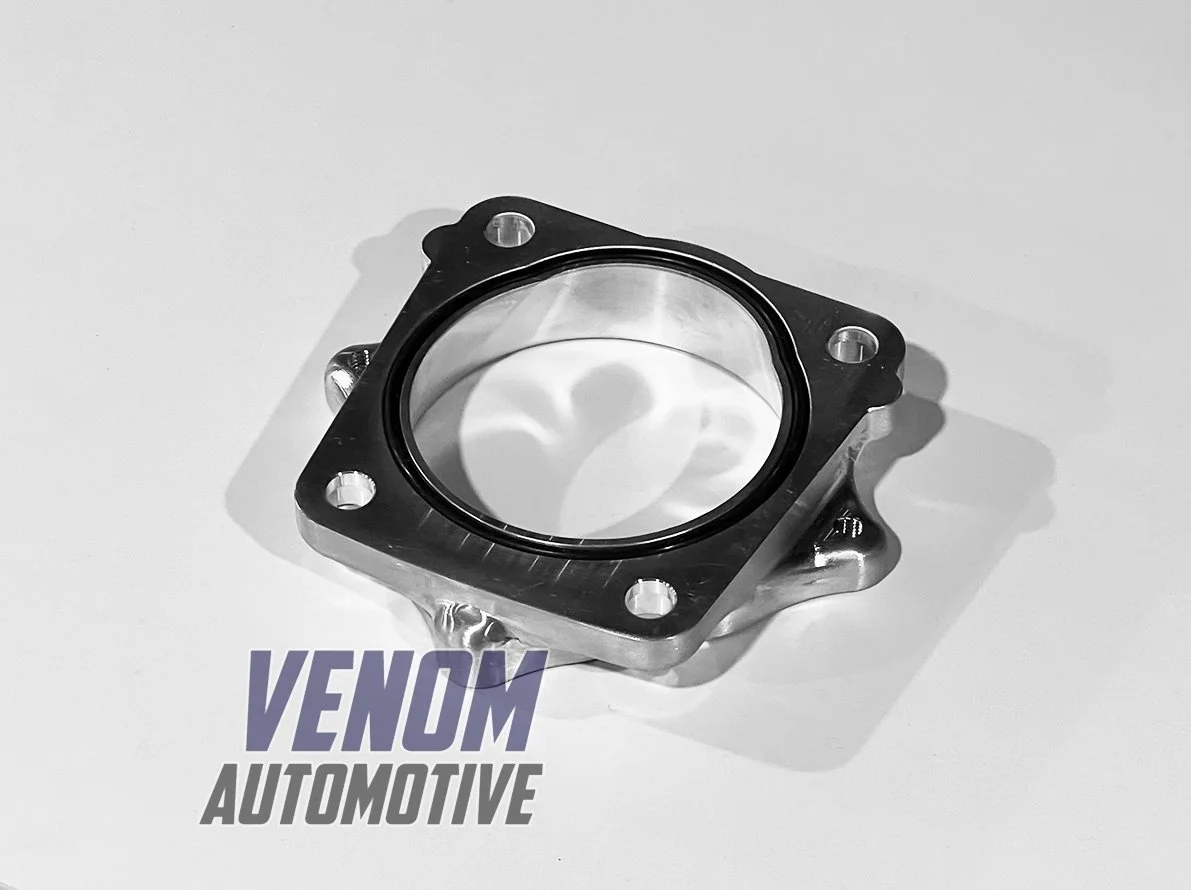

-1x JZA80 Billet DBW Adaptor 2JZ-GTE Non-VVTi

-4x M8 Grade 316 SS Bolts

-4x M6 Grade 316 SS Bolts

-4x M6 Grade 316 SS Washers

- 2x O-Rings

Installation Tips

1. Remove OEM Throttle Body as per the Toyota Supra Repair Manual (TSRM)

2. Remove existing lower manifold studs

3. Ensuring 3mm O-Ring is correctly seated, Install Adaptor Plate (no gasket req.)

4. Ensuring 2mm O-ring is correctly seated, Install Bosch 74mm DBW Adaptor.

5. Complete Wiring Installation - Refer Bosch Installation Instruction (not supplied).

6. Reinstall Intercooler Piping - Note that additional length will be required as this throttle body is shorter than the OEM Variant.
