2JZ-GTE VVTI Bosch 74mm DBW Throttle Body Adaptor Extended

Description

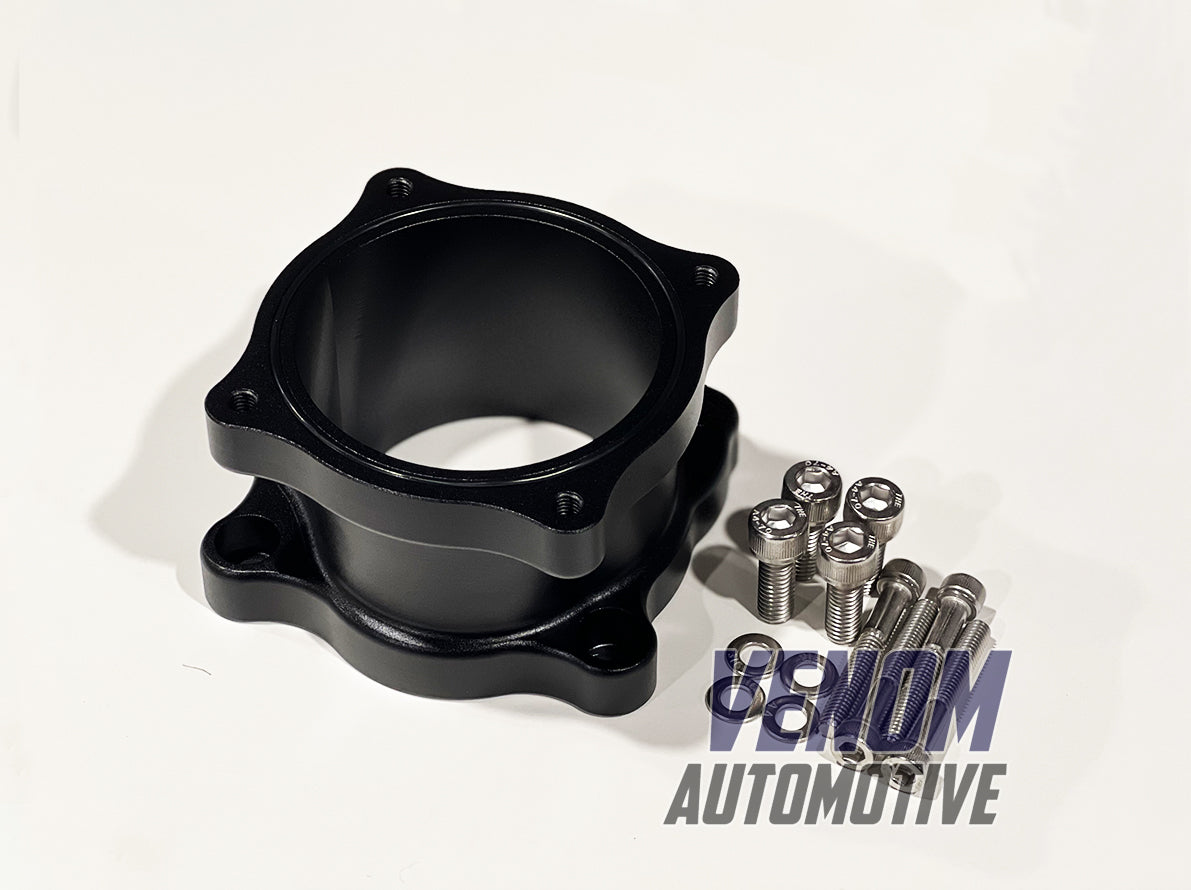

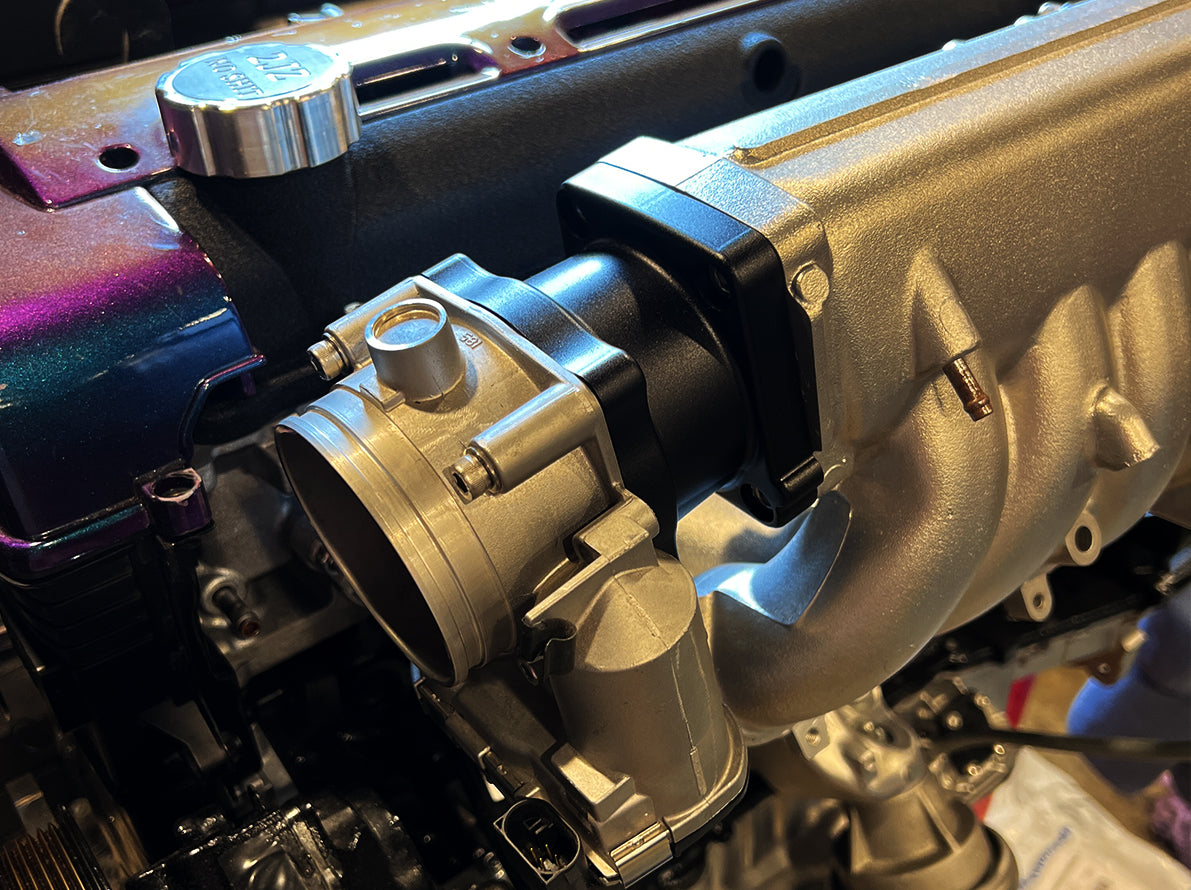

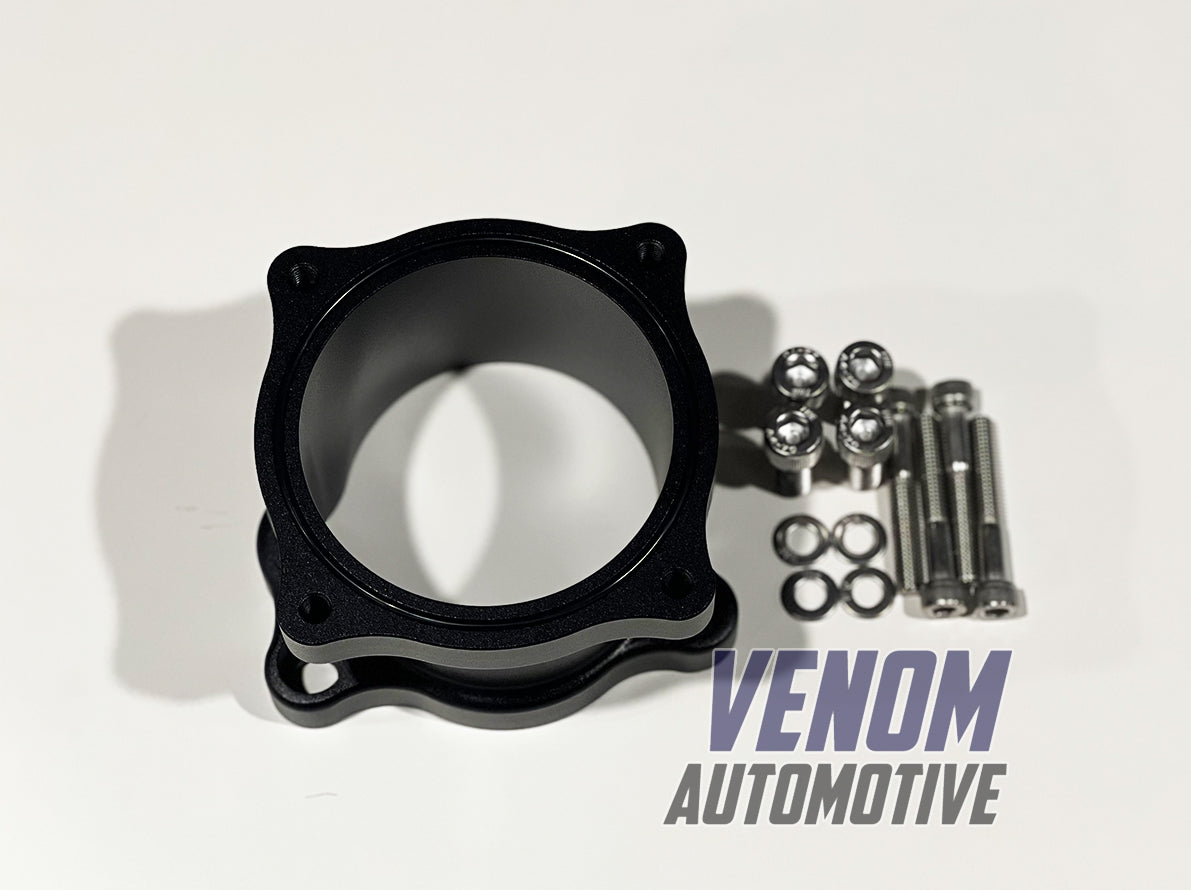

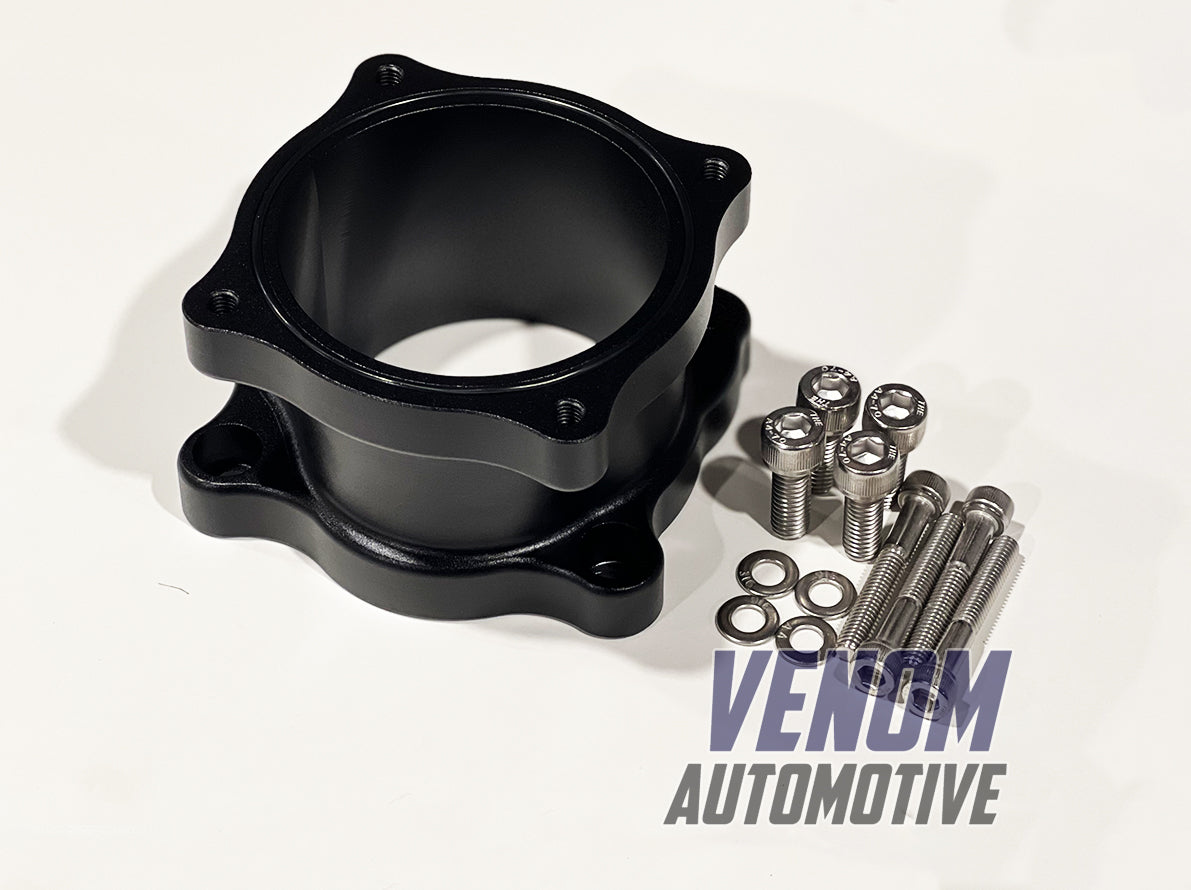

Venom Automotive 2JZ-GTE VVTi Drive By Wire (DBW) Throttle Body Adaptor is designed to mount a Bosch 74mm (PN: 0 280 750 474 - Not Included) to the Non-VVTi OEM Intake Manifold to enable a host of benefits when paired with an aftermarket ECU, such as:

1. Tidy up the Engine Bay by deleting the existing throttle body.

2. Increased Tuneability and Idle Control

3. Launch control capability

This bracket differs from our other variant as it allows the throttle body to be installed at various 90-degree angles to suit chassis or aftermarket fuel line configurations.

Requires the use of an aftermarket ECU and E-throttle pedal.

Finish

CNC Billet 6061 Aluminium - Black Anodised

Installation Tips

1. Remove OEM Throttle Body as per the Toyota Supra Repair Manual (TSRM)

2. Remove existing lower manifold studs.

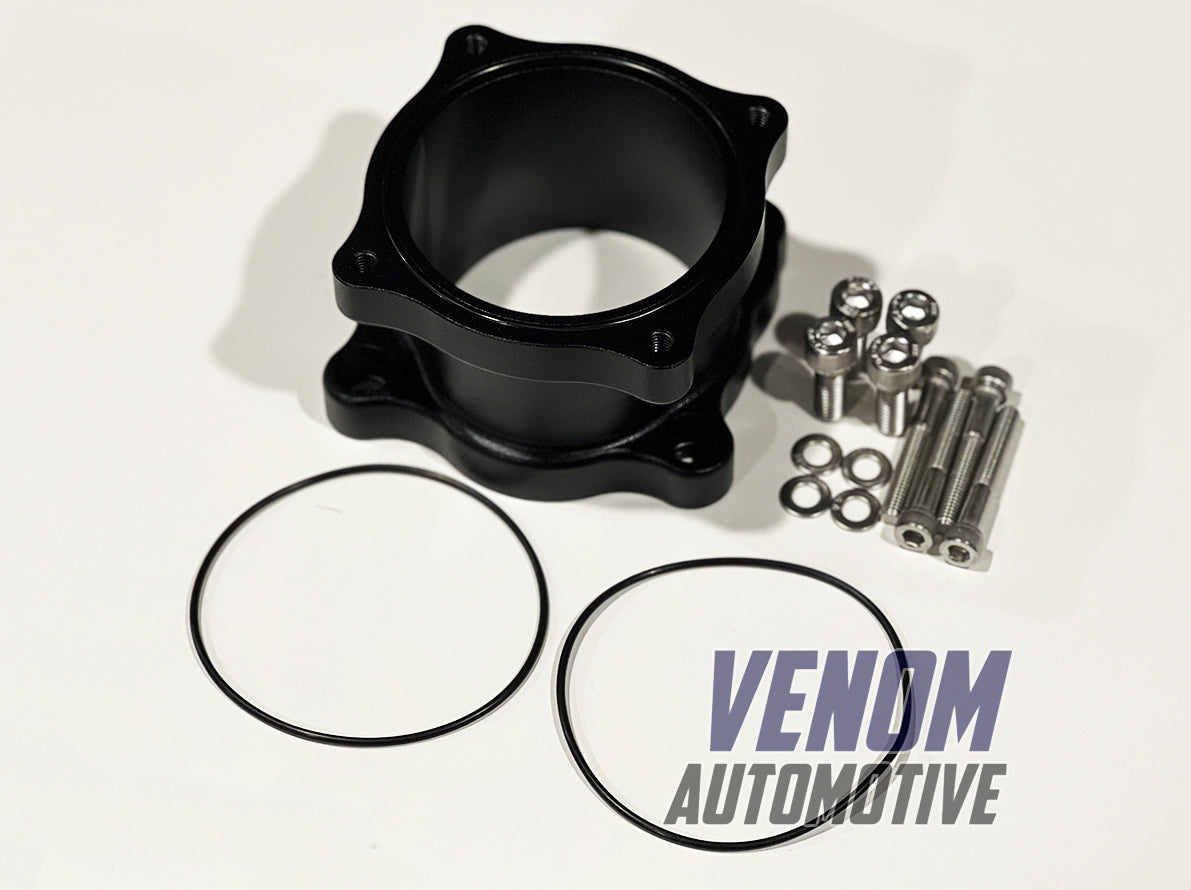

3. Ensure the 2mm O-Ring is correctly seated. Install the Adaptor Plate (no gasket required) on the Manifold.

4. Ensure the 2mm O-ring is correctly seated. Install the Bosch 74mm DBW Adaptor.

5. Complete Wiring Installation - Refer to Bosch Installation Instruction (not supplied).

6. Reinstall Intercooler Piping - Additional length will be required as this throttle body is shorter than the OEM Variant.
