Nissan R32 / R33 / R34 Drive By Wire (DBW) Accelerator Pedal Adaptor

Expanding on our JZA80 Pedal Adaptor, this new adaptor is designed for the Nissan R32, R33, and R34 model range and allows for an easy and convenient modern-day conversion to drive-by-wire.

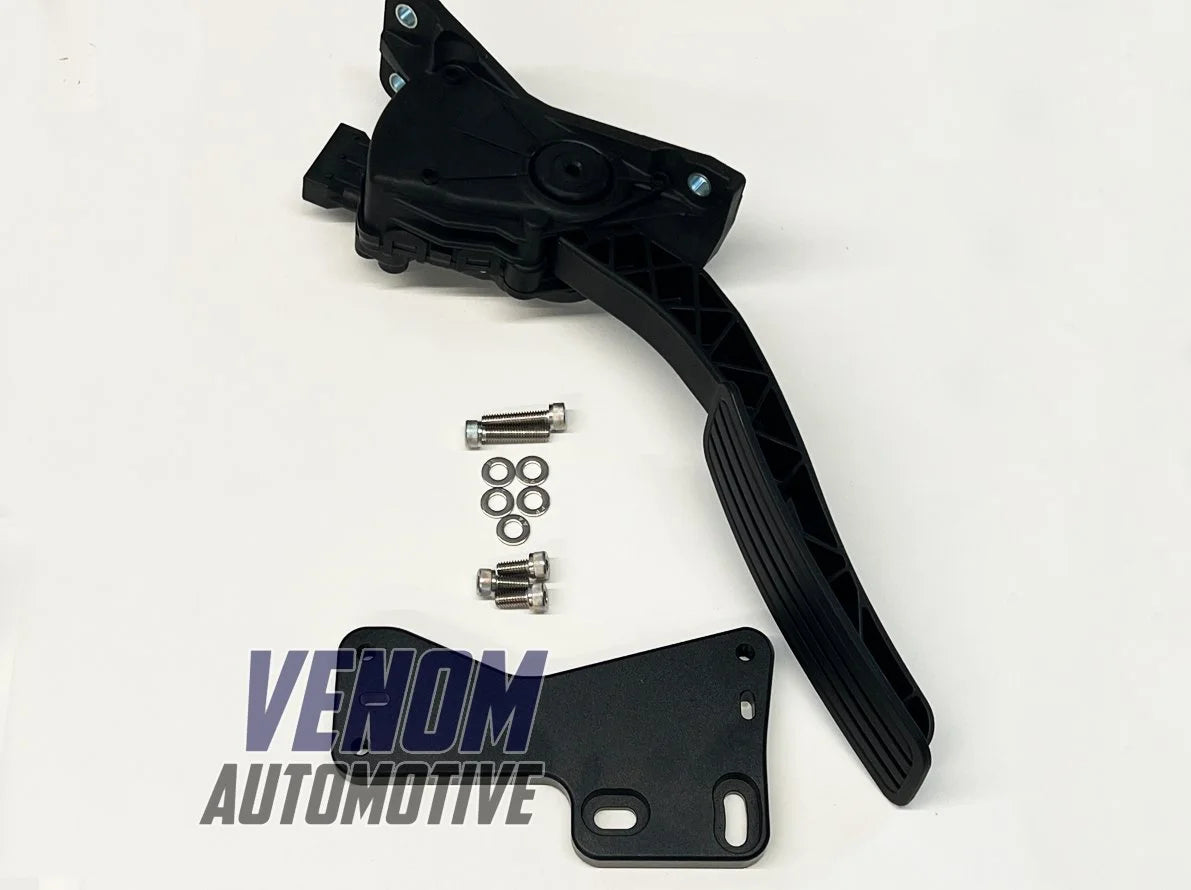

This adaptor piece will allow a universal GM/Hella DBW Accelerator Pedal assembly (PN: 93 238 396 / APS 007) to be bolted up in place of the original cable drive pedal assembly using existing bolt holes.

No Drilling is required!!!

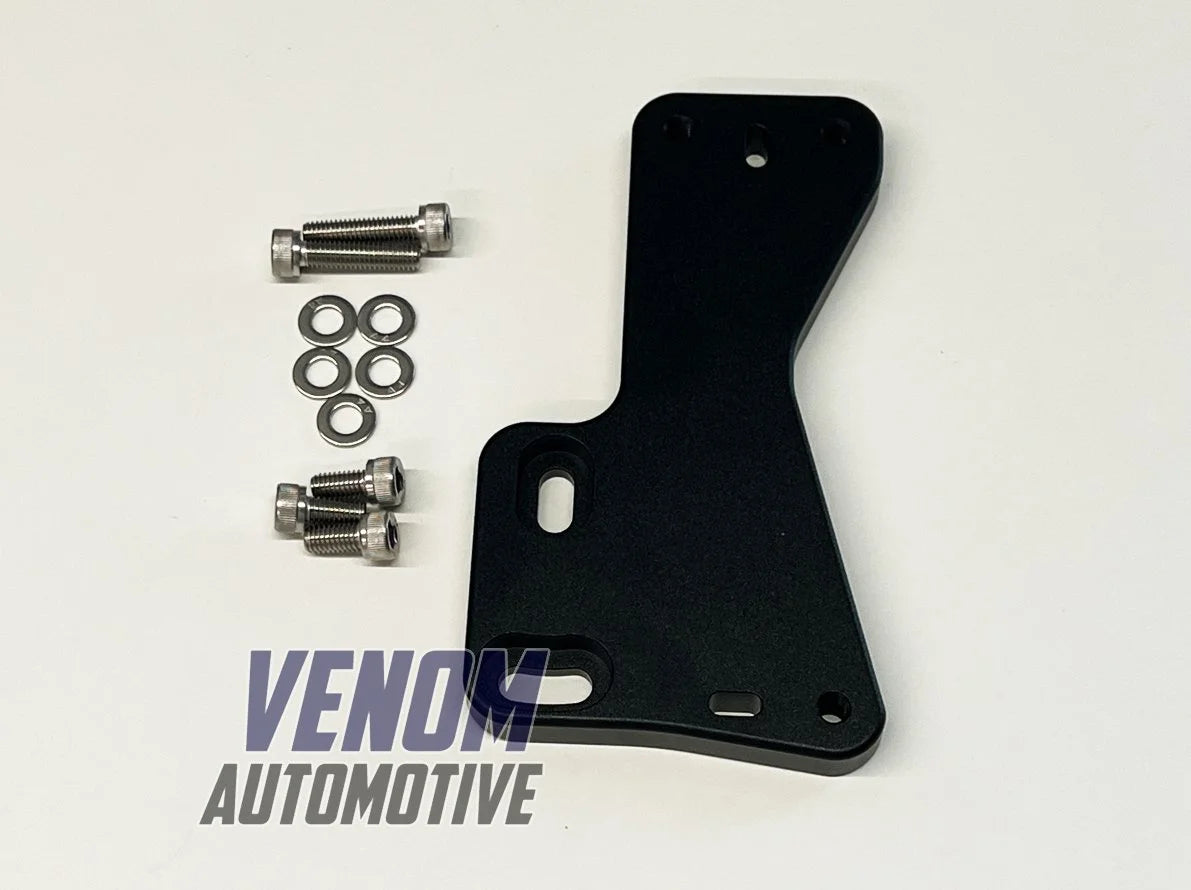

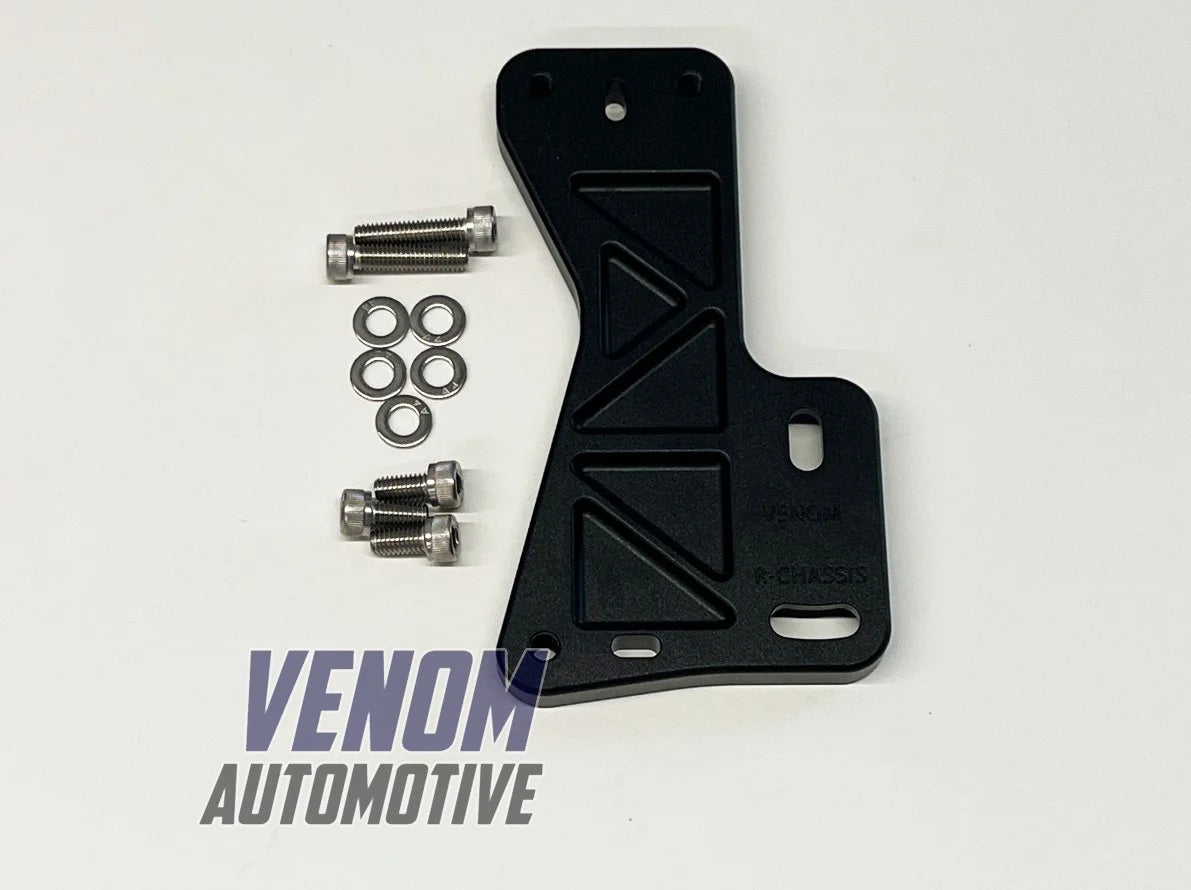

CNC'd from 6061 Aluminium; the bracket is designed to replicate the original pedal location and feel.

Fitment

Available in RHD versions to suit any Nissan R-Chassis (32 to 34).

Installation Tips

1. Contortion self under the dash to remove the OEM Throttle Cable and Pedal as per the Nissan Repair Manual.

2. Whilst still stuck under the dash, loosely install the two (2) M6 bolts with washers. Do not tighten yet, as the design has some adjustment capabilities.

3. Install the DBW Pedal Assembly. It may pay to have the harness already plugged in (it is not included), as the space behind the dash is tight.

4. Tighten down the adaptor bracket to the firewall after finessing the fitment.

5. Complete the pedal wiring and tuning, and install the Throttle Body Adaptor (sold separately) on the engine. An aftermarket ECU with DBW capability is required to control the pedal.
