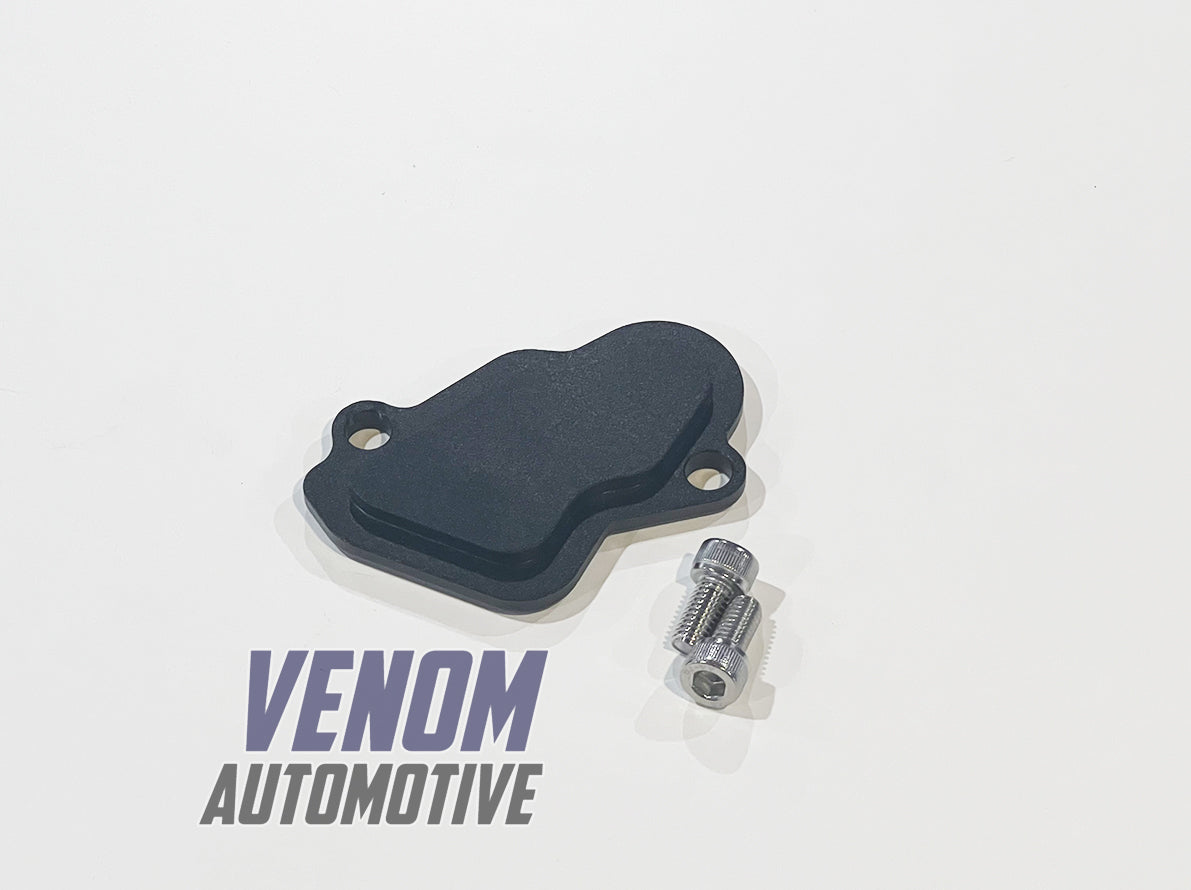

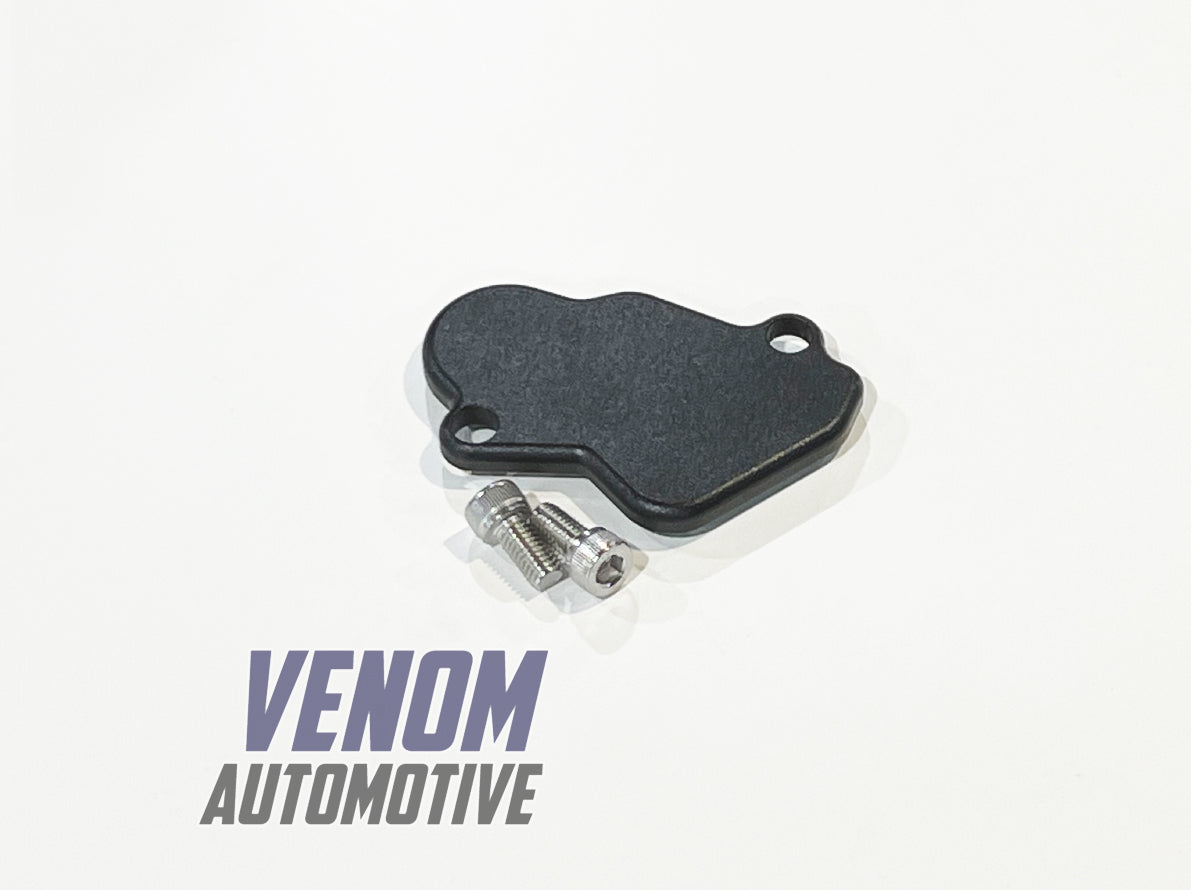

1UZ-FE VVTi Water Bridge Coolant Bypass Block Off Plate
- Low stock - 3 items left
- Backordered, shipping soon
DESCRIPTION
This VVTI Water Bridge Coolant Bypass Block Off Plate allows the OE throttle Body coolant bypass to be blocked off and not leak. Perfect for running a different throttle body (DBW) or simplifying the engine.
Machined from 6061 Aluminium, it could also be drilled and tapped for a coolant pressure or temperature port.
Installation Tips
-
Remove OEM Rubber hose and housing.
-
Remove existing studs with Vice Clamps in an anti-clockwise direction.
-
Apply Gasket Sealant (Toyota Grey Recommended - Not included).
-
Ensure the bracket is correctly seated, then install and torque the M6 Bolts.
1x 1UZ-FE VVTi Waterbridge block off Plate.
2x M6 Grade 316 Stainless Socket Cup Bolts.
