Name: RB20 / RB25 / RB26 /RB30 -10AN Billet Oil Filter Adapter Plate
Brand: Venom Automotive
SKU: RB20/RB25/RB26/RB30-10ANOILFILTERPLATE-BLACK
Price: 129.0 AUD
Availability: InStock

RB20 / RB25 / RB26 /RB30 -10AN Billet Oil Filter Adapter Plate

$164.00 $129.00 Save $35.00

Tax included. Shipping calculated at checkout.

Outlet Configuration

2 x 1/8NPT Ports

Oil Filter Housing Stud Required?

Yes

Low stock - 3 items left
Backordered, shipping soon

Description

Our RB Series Oil Filter Adapter Plate is based on our very popular UZ-FE adaptor plate. Designed to be bolted to the block rather than generic screw ones, this adaptor provides reliability and peace of mind for years to come.
Made to run twin -10AN lines without impeding oil flow. -8AN or smaller can also be fitted via the M20x1.5mm tapped threads.

This Oil filter adapter also features 2x 1/8” NPT Tapped Ports on the return side to suit turbo oil feeds and additional sensors. NPT ports are tapped to 7mm depth; additional tapping may be required to fit specific sensors/fittings.

Sensors larger than 1/8” NPT, such as the OE oil temp sensor, will require thread tapping to suit.

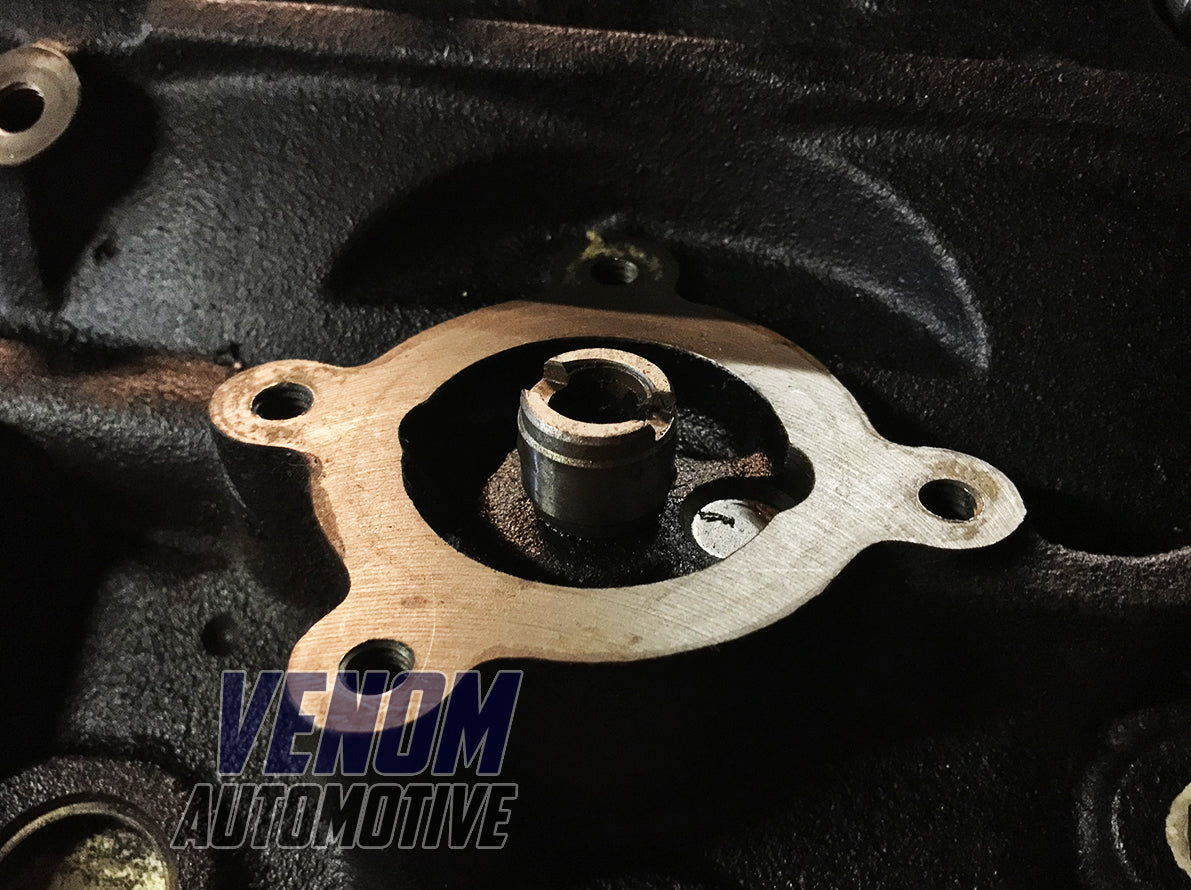

Our adaptor plate bolts on rather than screws on, unlike the '90s-style remote oil filter kits. As such, the standard oil filter extension housing is required, as shown in the pictures. Please select this at checkout if your engine configuration does not already have it installed. Alternatively, it can be sourced from Nissan. PN15213-V0711.

Please note that due to the proximity of the AN fittings, some order styles of rubber hose with large-diameter AN fittings may not fit. Therefore, AN10 braided teflon lines are strongly recommended.

Sizing

Metric M20x1.5mm threads with AN10 Fittings (Included) - Thread sealant recommended.

1x Billet CNC'd Adapter Plate
3x M8 304 Grade Stainless Bolts
2x 1/8NPT Plugs
2x AN10 to M20x1.5 Fittings
2x O-Rings
1x OEM Filter Stud (Optional)

Shipping rates are calculated automatically at checkout.

If your country doesn’t display available shipping options, please contact us so we can provide a manual quote.

Once your order is placed, you’ll receive an email confirmation (check your junk folder just in case). Orders are dispatched via Australia Post within 2 business days, and a tracking number will be provided.

Estimated delivery times:

• Australia Post Express: 1–2 business days
• Australia Post Standard: 2-7 business business days

• International Post: 4–14 business days

For delivery enquiries, reach us at parts@venomautomotive.com.au.
