Name: 1JZ-GTE Non-VVTI Bosch 74mm DBW Throttle Body Adaptor
Brand: Venom Automotive
SKU: 1JZ-GTE-NONVVTI-74MM-DBWADAPTOR-RAW
Price: 139.0 AUD
Availability: InStock

1JZ-GTE Non-VVTI Bosch 74mm DBW Throttle Body Adaptor

$139.00

Tax included. Shipping calculated at checkout.

Finish

Raw Aluminium

Black Anodised

Low stock - 8 items left
Backordered, shipping soon

Description

Venom Automotive 1JZ-GTE Non-VVTi Drive By Wire (DBW) Throttle Body Adaptor is designed to mount a Bosch 74mm (PN: 0 280 750 474 - Not Included) to the Non-VVTi OEM Intake Manifold to enable a host of benefits when paired with an aftermarket ECU, such as:

Tidy up the Engine Bay by deleting the Throttle Cable.
Increased Tuneability and Idle Control
Launch control capability

This bracket is reversible to suit chassis or aftermarket fuel line configurations.

This DBW is the slimline version for throttle body installation on 45-degree angles; we also have an extended version; refer to the 1JZ-GTE section (here).

Optional Add-ons (to be ordered separately):

74mm DBW bolt-on silicone adaptor (Link)
74mm DBW bolt on 3" Clamp adaptor (Link)
1JZ IACV Delete Plate (Link)

Please note that this product requires the use of an aftermarket ECU and E-throttle pedal.

Installation Tips

Remove OEM Throttle Body as per the Toyota Repair Manual (TSRM)
Remove existing lower manifold studs.
Ensure the 3mm O-Ring is correctly seated, then install the Adaptor Plate (no gasket required).
Ensure the 2mm O-ring is correctly seated. Install the Bosch 74mm DBW Adaptor.
Complete Wiring Installation - Refer to Bosch Installation Instruction (not supplied).
Reinstall Intercooler Piping - Note that additional length will be required as this throttle body is shorter than the OEM Variant.

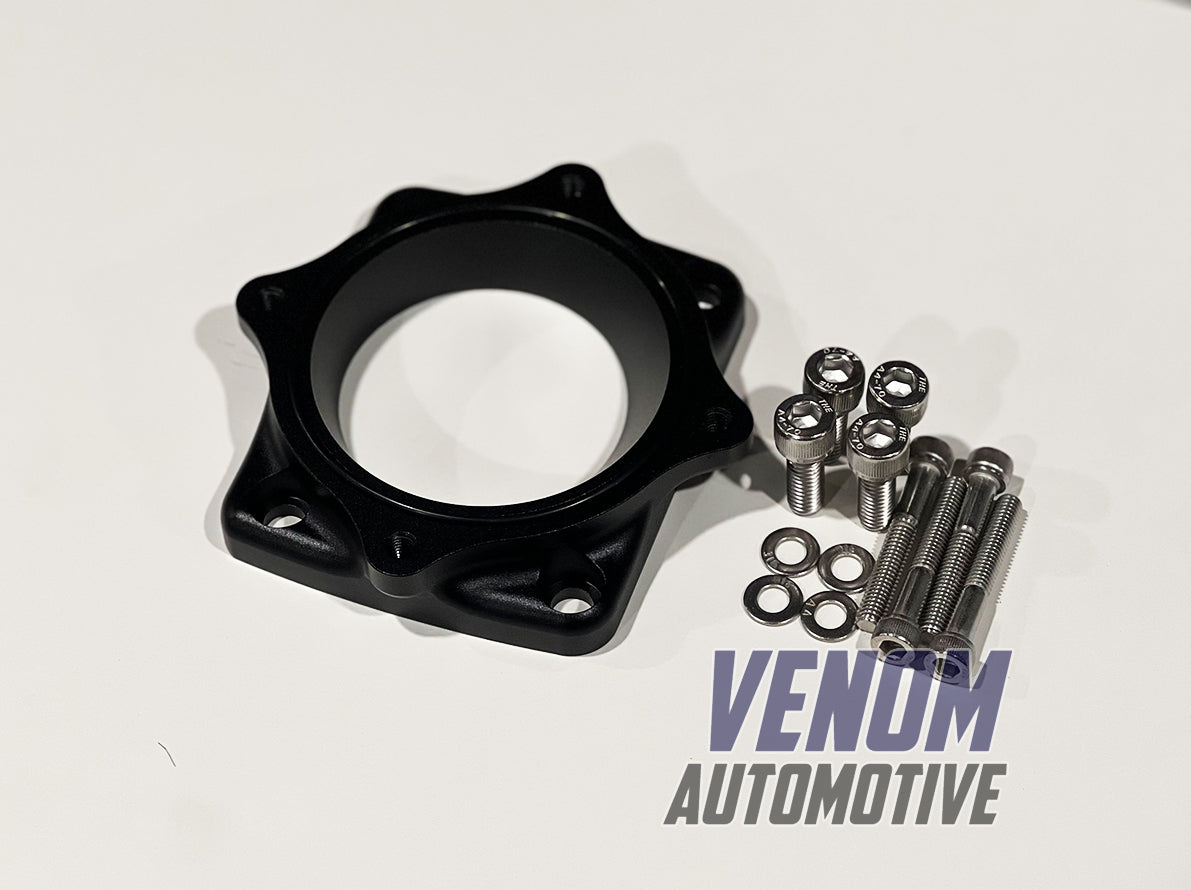

-1x JZA80 Billet DBW Adaptor to suit 1JZ-GTE Non-VVTi

-4x M8 Grade 316 SS Bolts

-4x M6 Grade 316 SS Bolts

-4x M6 Grade 316 SS Washers

- 2x O-Rings
