1JZ / 2JZ Oil Filter Stud for all Toyota JZ Engines
- Low stock - 2 items left
- Backordered, shipping soon
Delete the factory oil cooler assembly with our single-piece stud and simplify the coolant and plumbing around the block. This will allow a standard 1JZ/2JZ Oil Filter, such as Ryco Z418, to screw directly to the block.
The factory oil cooler assembly can fail without proper maintenance, leading to a damaged or clogged relief valve.
Our unique design allows the stud to attach securely to the block without risk of over- or under-threading. It is made from 4041 steel and zinc and coated for durability.
Installation Instructions
-
Remove the existing oil filter and oil cooler assembly as per the Toyota Service Repair Manual (TSRM)
-
Install the water bypass hose (optionally included or supply your own) to relink the coolant port on the block from the back of the water pump.
-
Install the oil filter stud and torque it to 70Nm.
-
Install a new Oil filter.

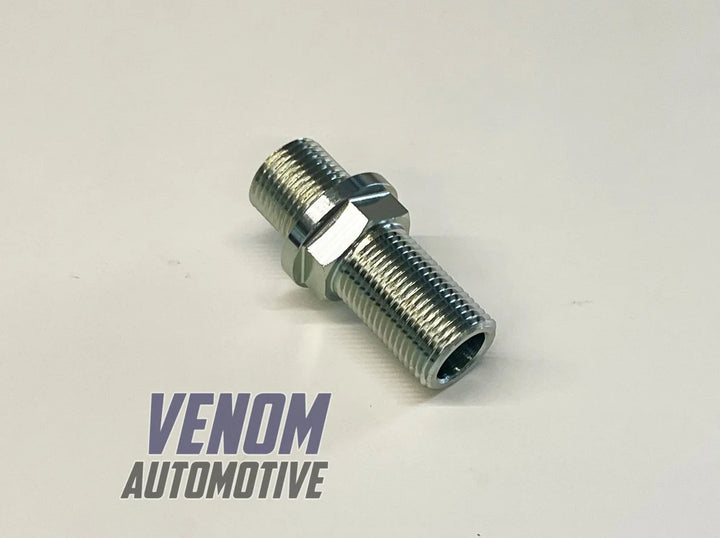

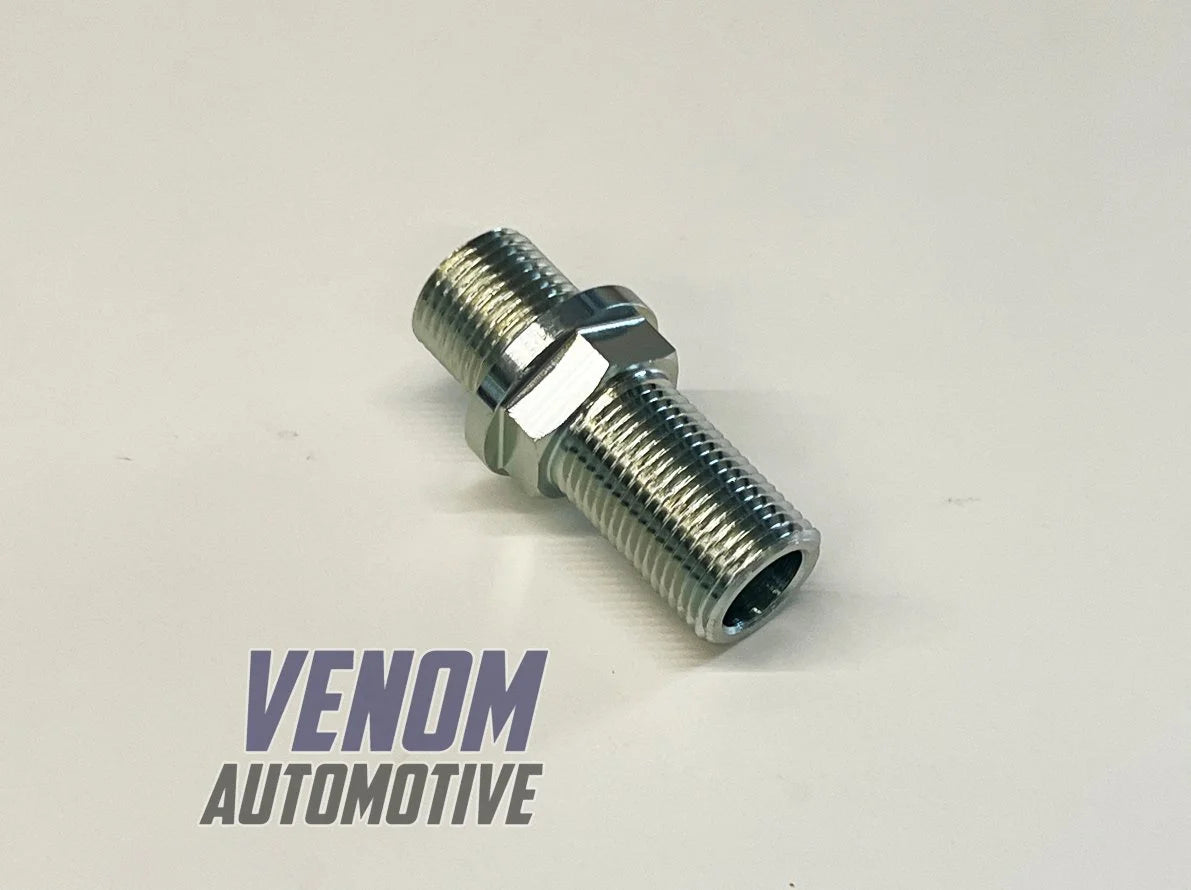

Oil Filter Stud: (1) Oil Filter Stud

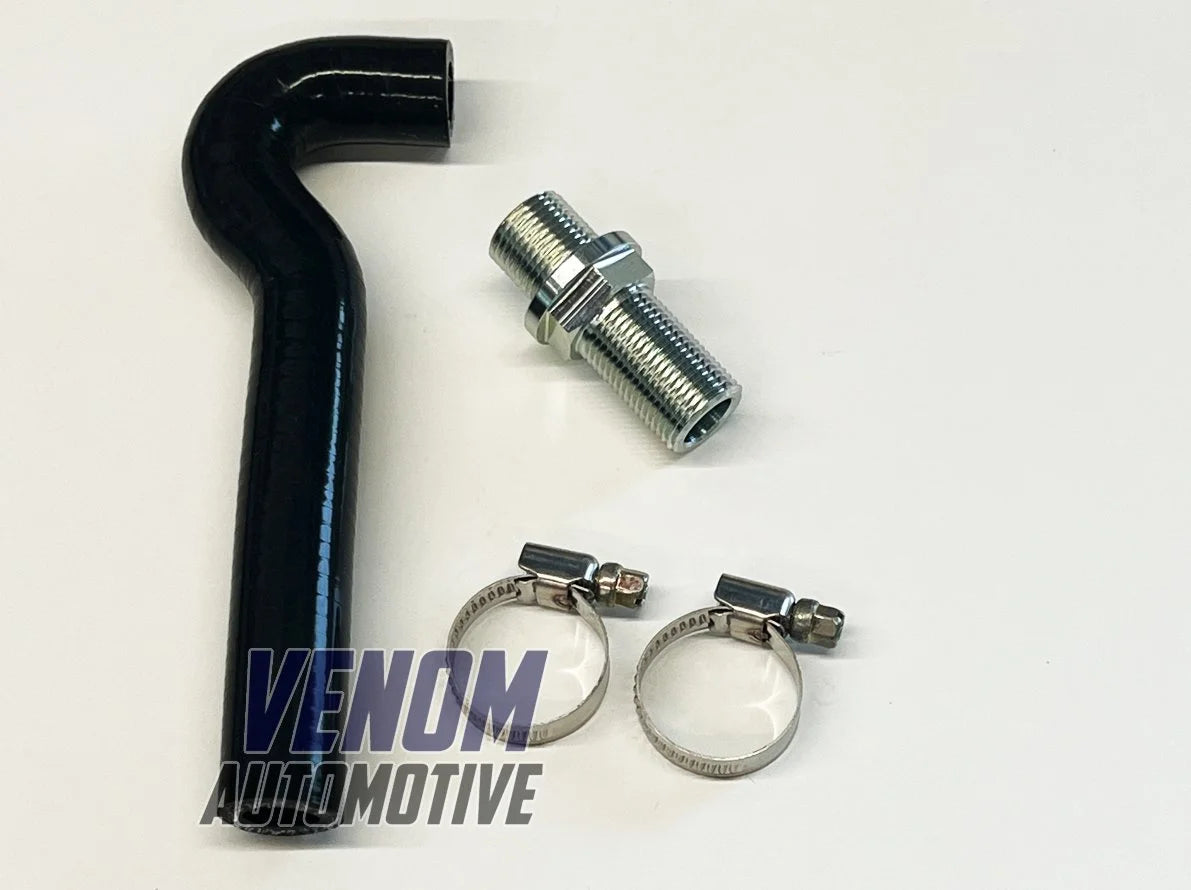

Oil Filter Stud & Coolant Bypass Hose Kit: (1) Oil Filter Stud & Hose as Pictured
